Archival Artifacts
Relief Printing Blocks & Photoengravings
Before offset lithography and digital prepress, Taylor Instrument published its product catalogs, corporate letterheads, and commemorative booklets using letterpress relief cuts. These original zinc and copper plates were mounted type-high on hardwood blocks. Because relief cuts strike paper directly, all lettering and portrait orientations are laterally reversed on the metal surface.
Featured Artifact: Founder George Taylor Halftone Cut
Profile halftone relief plate mounted type-high, showing the mirrored metal block alongside the left-facing printed impression.

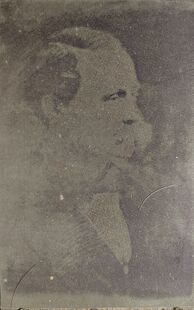

Physical Relief Plate
Laterally reversed on metal (facing right)
Printed Impression
As rendered on paper (facing left)
Subject: George Taylor (1824–1889)
Process: Photoengraved copper/zinc halftone relief block.
Usage: Catalogs, jubilee anniversary publications, and company histories.
Note: The fine dot matrix allowed continuous photographic tones to be inked and pressed alongside metal handset type.
Surviving Plates, Line Cuts & Trademark Slugs
Click any plate to inspect the full-resolution engraving and archival notes.
Taylor Brothers Hill Street Factory
Halftone cut depicting the historic warehouse and surrounding street.
1860s Taylor & Richardson Letterhead
Line-engraved letterpress relief cut reproducing early firm correspondence.
Tray of Trademark Slugs & Logotypes
Assorted Taylor Brothers Company imprints and division nameplates.
ACCURATUS & Flag Trademark Blocks
Wood-backed printing blocks featuring proprietary Taylor brand marks.
About the Collection: These physical artifacts represent surviving relief blocks preserved from Taylor Instrument production shops. If you possess additional cuts, letterpress dies, or print proofs, please reach out via our Contact Page or join the discussion in the Archival Community.
